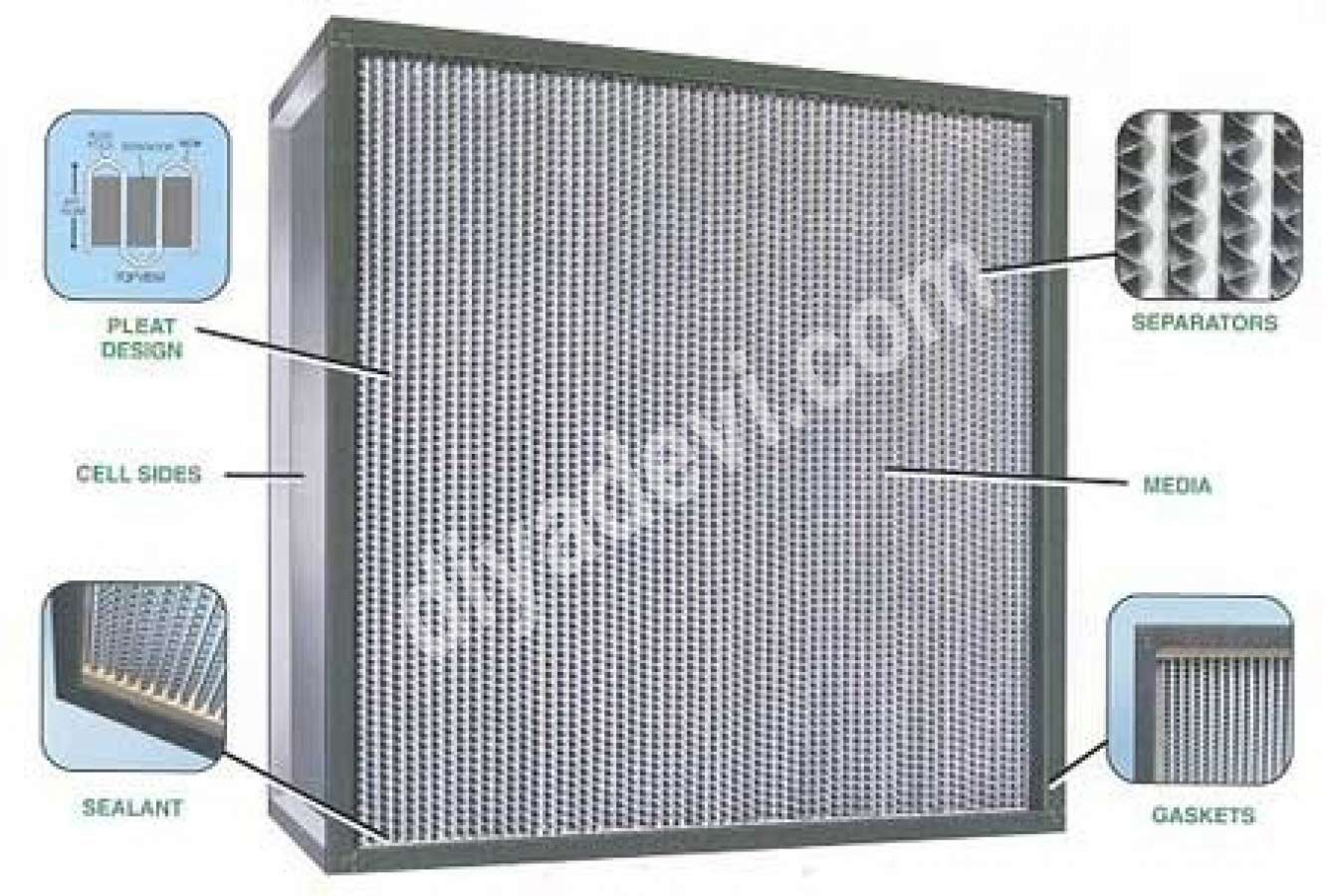

HEPA Filters
Hepa filters are designed to meet requirement of very fine filtration up to 0.3 micron at high efficiency of 99.99 %. We have added a new feature in conventional hepa filters by using spun bonded polyester media which is cleanable in nature. These are available with different coatings like PTFE coating, PTFE lamination & more for better dust releasing. Due to hydrophobic & oleo phobic treatment on media, it does not allow any moisture & oil contents to pass through.
Enquiry Call Now
Features:
- Low pressure drop due to pleated configuration
- Easy to install
- No Bypassing
- High dirt holding capacity
- High filtration efficiency
- Good Mechanical Strength
- Retrofit to any standard make.
Technical Specifications
Configuration
- Flange type & Box type
Sizes available
- 610 mm x 610 mm x 50 mm/100 mm/150 mm/300 mm
- 545 mm x 545 mm x 50 mm/100 mm/150 mm/300 mm
- Customized sizes are available on request
Filtration Rating
- 0.3 micron & more
Filtration efficiency
- 99.97% – 99.99 %
Frame Material
- SS 304/GI (Galvanized Steel)/Aluminium Powder coated/CRC powder coated or Zinc coated
Filter media
- Glass Fiber media/Spun bonded polyester media
