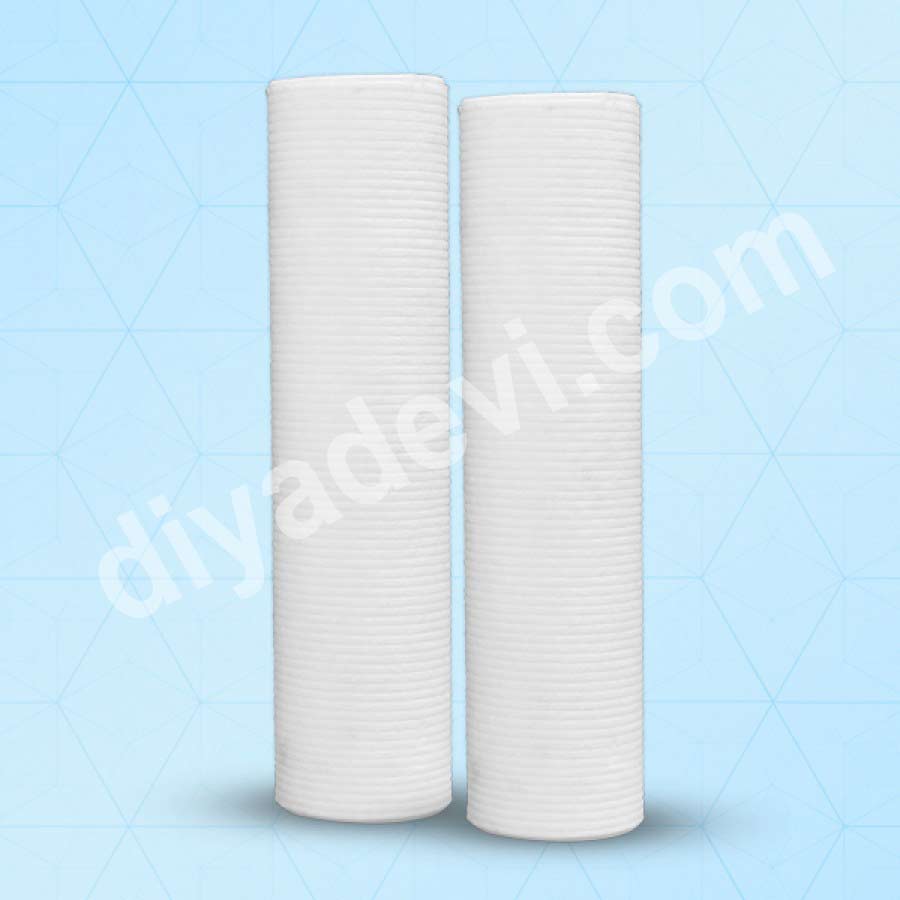

PP Polytwin Cartridge
PolyTviN PP spun depth filter cartridges for applications where depth filtration is required. They are the best economical high purity filter cartridges available. Featuring a graded density matrix of all polypropylene fibers, so they provide consistent filtration for a wide variety of fluids. Continuous fiber matrix prevents media migration and ensures consistent production yield and overall quality function performance
Enquiry Call Now
- They are the best economical high purity filter cartridges available.
- Featuring a graded density matrix of all polypropylene fibers, so they provide consistentfiltration for a wide variety of fluids.
- Continuous fiber matrix prevents media migration and ensures consistent production yield and overall quality function performance.
- Fixed pore structure provides efficiency integrity and optimum particle retention.
- PolyTviN without surfactants or binders to interrupt product quality or cause foaming.
- Thermally bonded non-woven fiber construction provides superiorfiltration and often eliminates the need for circulation to achieve product clarity.
- Itis useful for high temperature and high pressure process, as used inner core.
- Nominal micron rating
| Chemical industry | Paint, ink, Magnetic paint, oil resin, solvent, enzyme, plating chemicals, adhesive, resin, photographic chemical, metalworking. |
| Food and Beverage | Wine, potable water, beer, soft drink, brewery, sugar liquid, industry edible oils |
| General Process industry | LCD, chemical liquid, plating liquid, water for print-circulation-board, prefiltration for RO, UF, pure water, safety filter for ion - exchanging machine, and every kinds of water treatment. |
| Nominal length(Inch) : | 10, 20, 30 & 40. |
| Nominal OD(mm) | 62 |
| Nominal ID(mm) | 28, 30 |
| Media Depth(mm) | 16 |
| Effective area(m2) | 0.07 for 10inch |
| Filter media | Graded density spun polypropylene |
| Inner core & adapters | Polypropylene, Reinforce polypropylene by glass |
| Seal materials – Gaskets | Foamed Polyethylene flat gasket |
| – O-rings | Viton, Silicone, EPDM |
